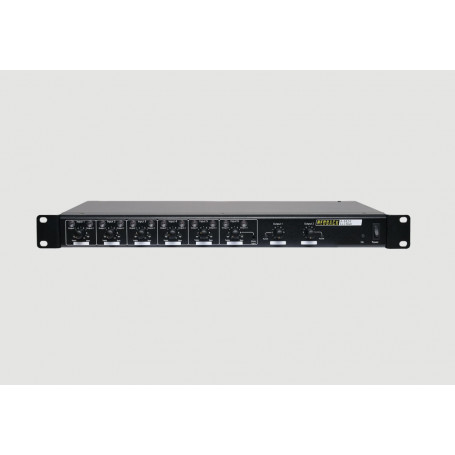

6 Input, 2 Output PA Mixer

New to the Redback mixer stable, this model incorporates six inputs which can be routed to 1 of 2 outputs or both as the installation requires. Inputs can be configured for either RCA line level signals or 3 pin XLR balanced mic signals. Outputs are via RCA and 3 pin XLR balanced 1V signals. Front panel controls including volume, treble and bass are included for each input. Independent master volume controls are provided for each output. Pushbutton  switches are provided to enable inputs to be switched to either output 1, output 2 or both outputs 1 and 2. DIP switches allow for each input sensitivity to be set to 100mV and phantom power on/off, and choice of RCA or XLR connection for that chosen input. All housed in a low profile 1RU 19” rack mountable case.

Features

Six mic / line input channels.
Two outputs via XLR/RCA 1V balanced.

Level, bass and treble control on all inputs.

Adjustable input sensitivity.
Phantom power selection on each input.
Route signals to each output or both outputs.
Includes power supply
1RU 19” rack mount case.
